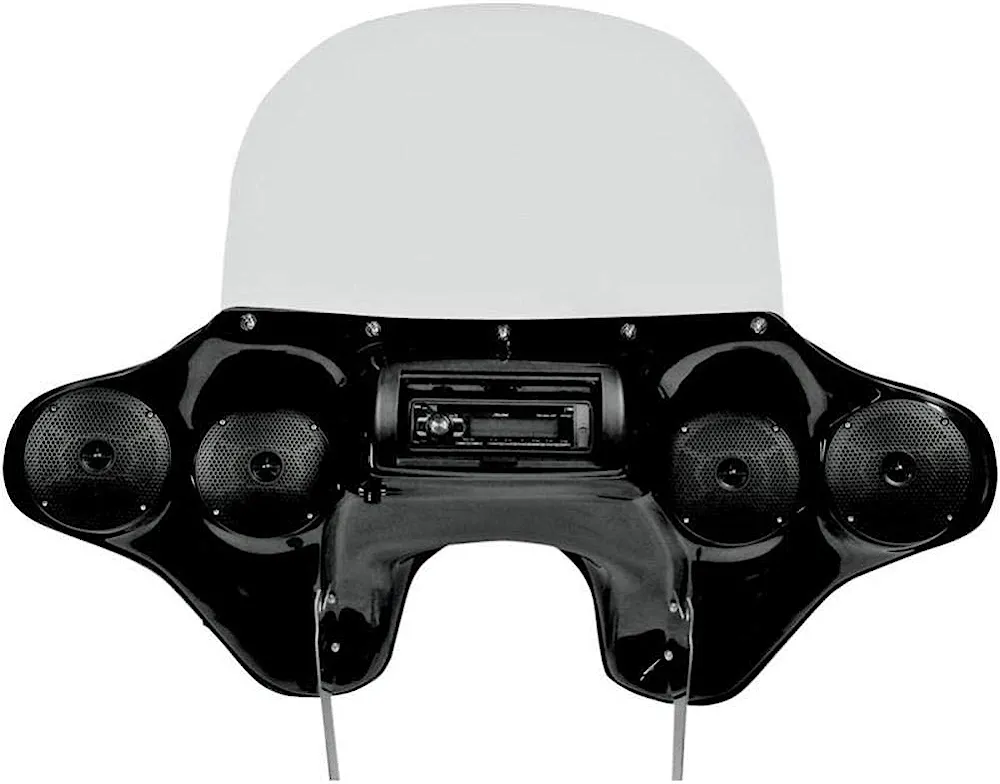

HOPPE INDUSTRIES Quadzilla Fairing w/Stereo Receiver – HDF-SWBK-QZ-HC

Hoppe Industries Quadzilla Fairing w/Stereo Receiver – HDF-SWBK-QZ-HC

For 13-14 FLD with handlebar control

Classically styled fairing that delivers the ultimate in sound and wind protection

Top-quality hand-laid fiberglass construction, gloss black gel-coated and ready to paint

Include Jensen JHD3630BT head unit; features AM/FM/USB SiriusXM Ready and iPod Ready stereo with Bluetooth

Stereo comes completely assembled with marine-grade weather door and four 5 in. pre-wired speakers

Concealed internal antenna for a clean, uncluttered look

Easy quick-detach connection to bikes electrical system

Kit includes quick-release brackets to mount on OEM windshield docking points or accessory detachable windshield docking points

Includes a 12 in. clear windshield, will accept 96-13 FLHT OEM style and aftermarket replacement windshields (sold separately) (some drilling and trimming may be required)

Handlebar control option controls Volume up/down, Track Tuning up/down, Mode Select and Mute

Handlebar control is die cast aluminum and waterproof with rubberized buttons

Made in the U.S.A.

Included Items:

(1) Black fairing assembly W/ (4) speakers, (1) radio installed

(1) Remote

(2) 4mm-.70 x 8mm Pan head bolts

(2) 4mm External tooth washers

(6) Cable ties

(1) Power cord

(1) 12″ Clear windshield W/ (5) mounting holes

(1) Audio control mounting bracket

(2) 6mm-1.00 x 45mm Pan head bolts

(2) 1/4″-20 x 2″ Socket cap head bolts

(2) 5/8″ Wide bushings

(2) Allen wrenches

(1) Microphone wire

(1) Microphone clamp

(1) Adhesive plate

(4) Bushings

(4) Stepped bushings

(1) #242 Loctite packet

(1) 12 volt fuse holder W/ 15 amp fuse

(1) Ring terminal

(1) 1/4″ Male terminal

(1) End cap connector

Instructions

Specifications

Finish Gloss

Mfg #: HDF-SWBK-QZ-HC

Part #: 234690

Type Fairing With Audio

Units Each

Weight 32.25 lbs

Alternate/OEM Part Number(s):

23300139
