SADDLE TRAMP Radio Installation Kit and Interface – BC-HDR-K1

Saddle Tramp Radio Installation Kit and Interface – BC-HDR-K1

Upgrade your Harley-Davidson® motorcycle to a larger aftermarket radio screen and retain the use of the built-in handlebar audio controls using Saddle Tramp’s installation kit. This kit is designed specifically for installing an ISO Double-DIN radio that has an “L” shaped chassis design with the chassis at the top. It includes an interface with a water-resistant enclosure that allows the original factory handlebar audio controls, if equipped, to work with the new aftermarket radio. An antenna adapter is also included for a complete installation. (Radio not included). Refer to the vehicle applications tab or chart for more information.

Stereo installation kit designed for an ISO Double-DIN radio

Includes an improved new interface

Saddle Tramp interface retains built-in handlebar audio controls

Water-resistant enclosure for added protection of the interface

Made from the highest quality ABS plastic for an original factory-like fit and finish

Includes antenna adapter, brackets, and hardware parts needed with detailed installation instructions

A tech support number is available for installation help 7 days a week

1-year limited warranty

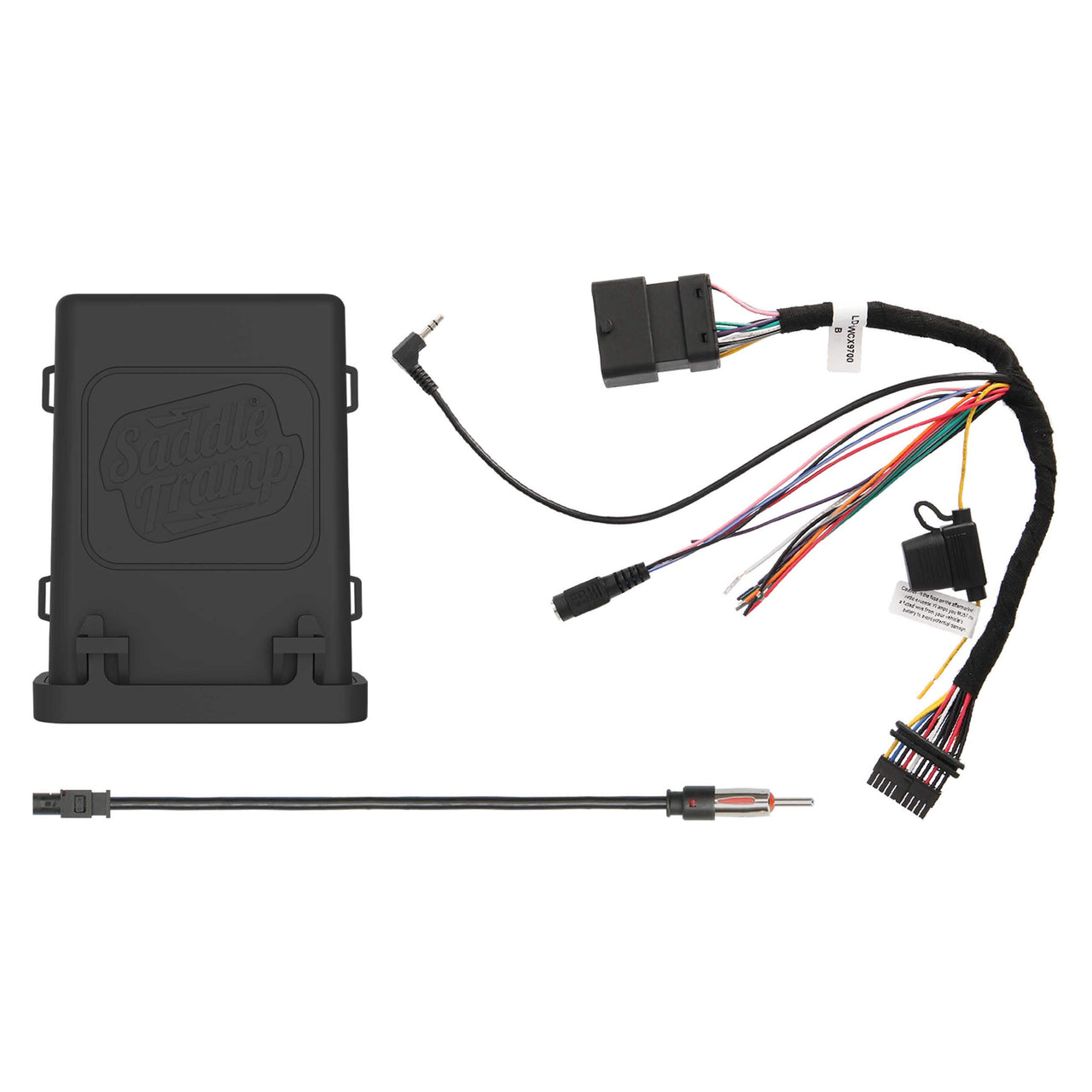

What’s in the box: Radio housing and brackets, Wiring harness, 40-EU10 antenna adapter, Interface module with water-resistant enclosure and harness, Screws and hardware, Installation instructions

Note:

This kit can only be used with an ISO DDIN Radio that has an “L” shaped chassis design with the chassis at the top.

Non-amplified models only

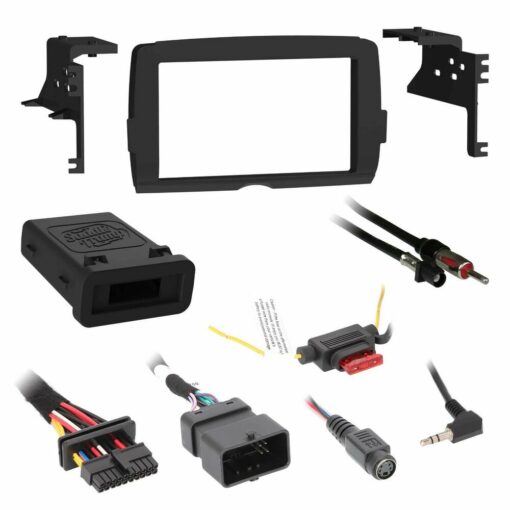

Included Items:

(1) Housing cover

(1) Circuit board

(1) Right side mounting bracket

(1) Left side mounting bracket

(1) Wiring harness W/#10 amp fuse

(1) Antenna adapter cable

(1) Adapter W/wiring

(4) Phillip screws

(4) Black 10-32 x 1/2″ Bolts

Instructions

Specifications

Mfg #: BC-HDR-K1

Part #: 4003149

Type Radio Mounting Kit

Units Each

Weight 1.20 lbs

UPC Code:

086429413997
